STORAGE SOLUTIONS

Future-Proof Storage

Our stationary energy storage systems (ESS) are based on the latest cell technology and highly efficient power electronics. We combine premium components into turnkey systems for single- and multi-family homes, as well as industry and commerce.

SOFTWARE SOLUTION

ENERGY HUB PREVIEW

Smart Energy. 100% Local. Coming Soon.

Most smart home systems force you into a frustrating compromise: sacrificing your privacy for convenience. They beam your highly personal energy data to distant servers, leaving your home vulnerable to internet outages, server crashes, and annoying "cloud lag." We believe your home should run on your terms.

That is why we are currently developing a revolutionary Energy Hub that processes everything locally, keeping your data exactly where it belongs—with you.

Here is what you can expect:

Absolute Privacy: Your data will never leave your house. We are building a system with zero cloud storage.
Lightning Fast: Powered by lightweight, locally hosted web technology for instant control, with zero "cloud lag."
100% Offline Reliable: Internet down? Your system will keep running flawlessly on your home Wi-Fi.
Secure Global Access: Control your home from anywhere via an encrypted bridge that simply connects you, but never sees your data.
Hacker-Proof: Setup will require physical presence in your home, making remote hijacking practically impossible.

By combining cutting-edge local processing with a secure, invisible tunnel for remote access, we are building the ultimate smart energy experience. You will get all the seamless convenience of modern automation, without ever surrendering control of your digital life.

The future of private, local energy management is currently in development. Stay tuned.

EARLY PREVIEW

Click or Scan

ENERGY HUB Web Application Mobile Access QR Code

Heating Control Prioritized energy for heating systems.

Cooling Management Smart cooling control during summer.

EV Charging Intelligent charging for your electric vehicle.

Storage Management Optimized charging and discharging of batteries.

INVERTER TECHNOLOGY

Key Product Advantages

Our inverters highlight several technical and design innovations that set them apart:

Advanced SiC Technology 0.5-1% higher efficiency, higher power density, better heat dissipation, and operations up to 3000m+ without derating.

Max. 15 Units (High Scalability) Parallel connection of up to 15 units for maximum system scalability as power demands increase.

98.4% Max. Efficiency Highly efficient power conversion achieving an industry-leading peak efficiency of 98.4%.

Smart Load Control Intelligent load management with integrated and highly secure leakage current protection.

150% PV Configuration Supports photovoltaic input power up to 150% of the rated AC output power.

110% Output Overload Stable power supply guaranteed with a 110% continuous AC output overload capacity.

180-960V Wider MPPT Range Extended MPPT voltage range for higher energy yields across varying light and module conditions.

APP+H5 Smart Data Analysis Supports batch inverter management, OTA upgrades, 15 languages, and smart data visibility.

Two Independent Battery Ports Mix old and new batteries with different voltages, currents, or BMS protocols. Saves costs on extra inverters.

Software-Based Power Expansion Expand power capacity via software upgrades instead of new hardware, saving 80% or more on expansion costs.

100% Three-Phase Unbalance In off-grid mode, supply 100% of rated power to a single-phase load or output 100% across each phase individually.

Display-Free Design Removal of failure-prone LCD screens lowers repair costs and extends inverter life. Reliance on app and cloud platform.

LOW VOLTAGE (LV)

LV Inverter Lineup

We cover a wide power range from 1.5kW up to 50kW. The Low Voltage (LV) lineup is designed primarily for smaller-scale residential or off-grid applications.

Single-Phase LV Hybrid (3-12kW) Up to 98% efficiency, 150-200% PV input, ultra-quiet (<25dB). 0ms on-grid / 4ms off-grid switchover. Parallel up to 6 units.

Single/Three-Phase LV Hybrid (5-12kW) 165mm ultra-thin IP65 design, massive 166%-400% overload capabilities, dedicated generator ports for smart monitoring.

LV Off-Grid Inverters (1.5-12kW) Built for off-grid. 97.5% efficiency (3-5% higher than market avg) and wide AC input power ranges (190-460%).

HIGH VOLTAGE (HV)

HV Inverter Lineup

The High Voltage (HV) lineup is engineered for more demanding, higher-capacity applications, leveraging the SiC technology for maximum efficiency.

Single & Three-Phase HV Hybrid (5-12kW) 165mm ultra-thin form factor, higher max efficiency of 98.2% and AC voltage range of 168-276V.

Three-Phase HV Hybrid (5-20kW) Supports 100% three-phase unbalance, <10ms grid switchovers, ruggedized for extreme altitudes up to 5000 meters.

Split Phase HV Hybrid/Off-grid (5-20kW) IP66/NEMA 4X rated enclosure, handles a massive 200A grid input current (max 48kW) and up to 300% overload.

Three-Phase HV Hybrid (22-50kW) Commercial-grade units achieve 98.6% efficiency, handle up to 138kW AC input, and feature a 200A generator port.

ENERGY STORAGE

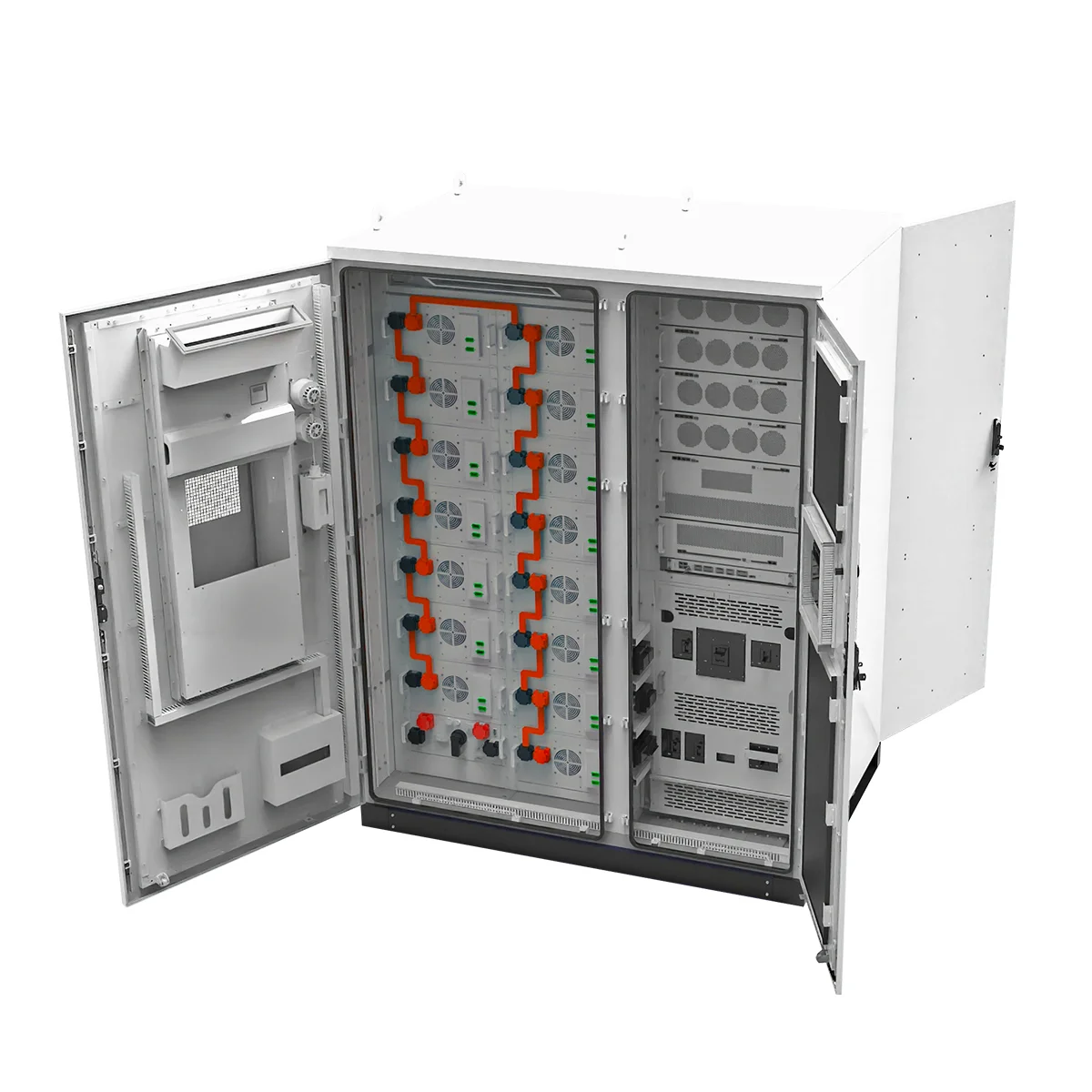

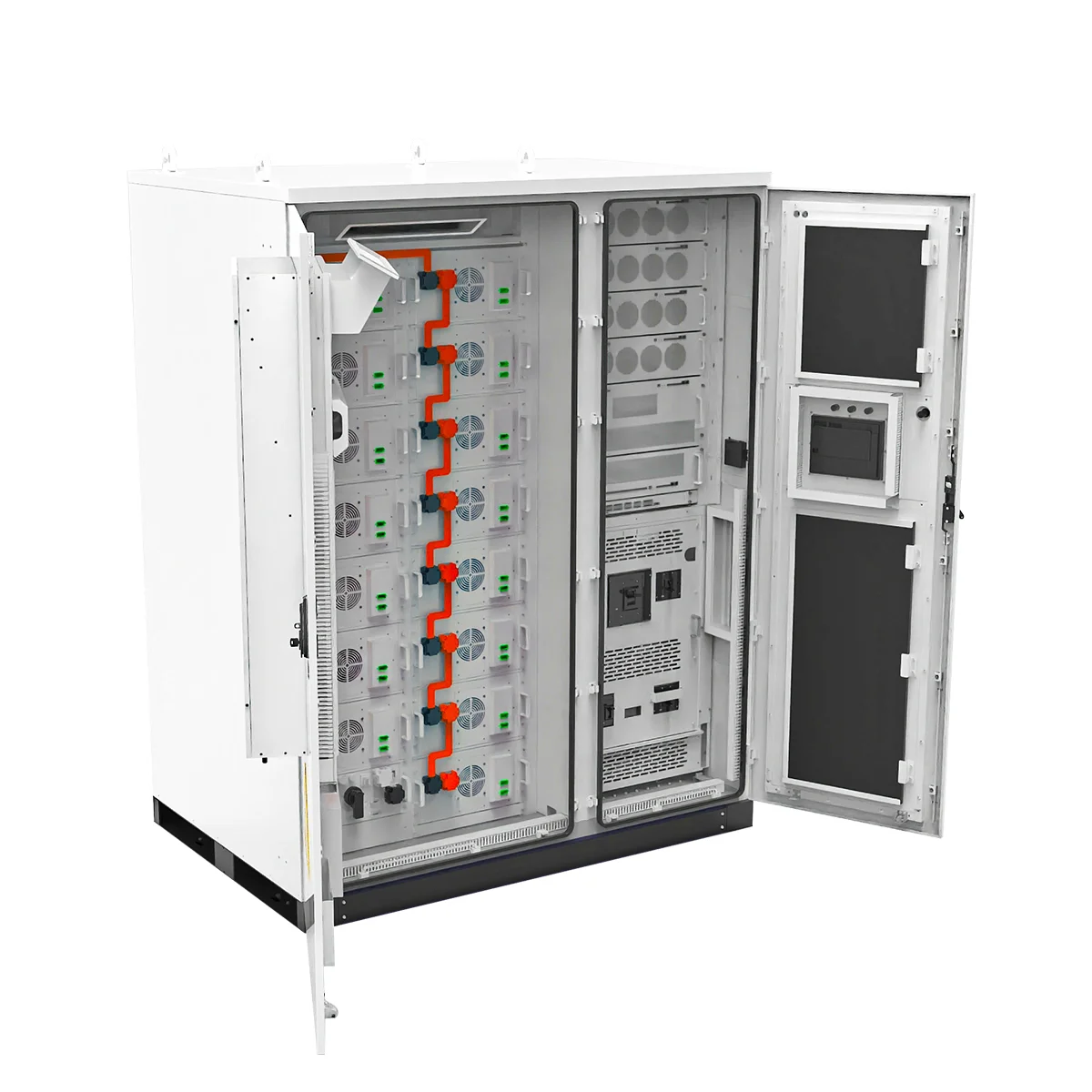

Industrial Storage Cabinets

For larger applications, we offer scalable cabinet systems. These modular units allow capacities from a few kilowatt-hours to the megawatt range.

Safety Concept Integrated Thermal Management & Fire Protection.

Modular Construction Easily expandable as demand increases.

Cell Technology Lithium Iron Phosphate (LFP) or Sodium-Ion (Na-Ion).

Plug & Play Fully pre-wired and tested systems.

PORTFOLIO

System Components

Storage Cabinets

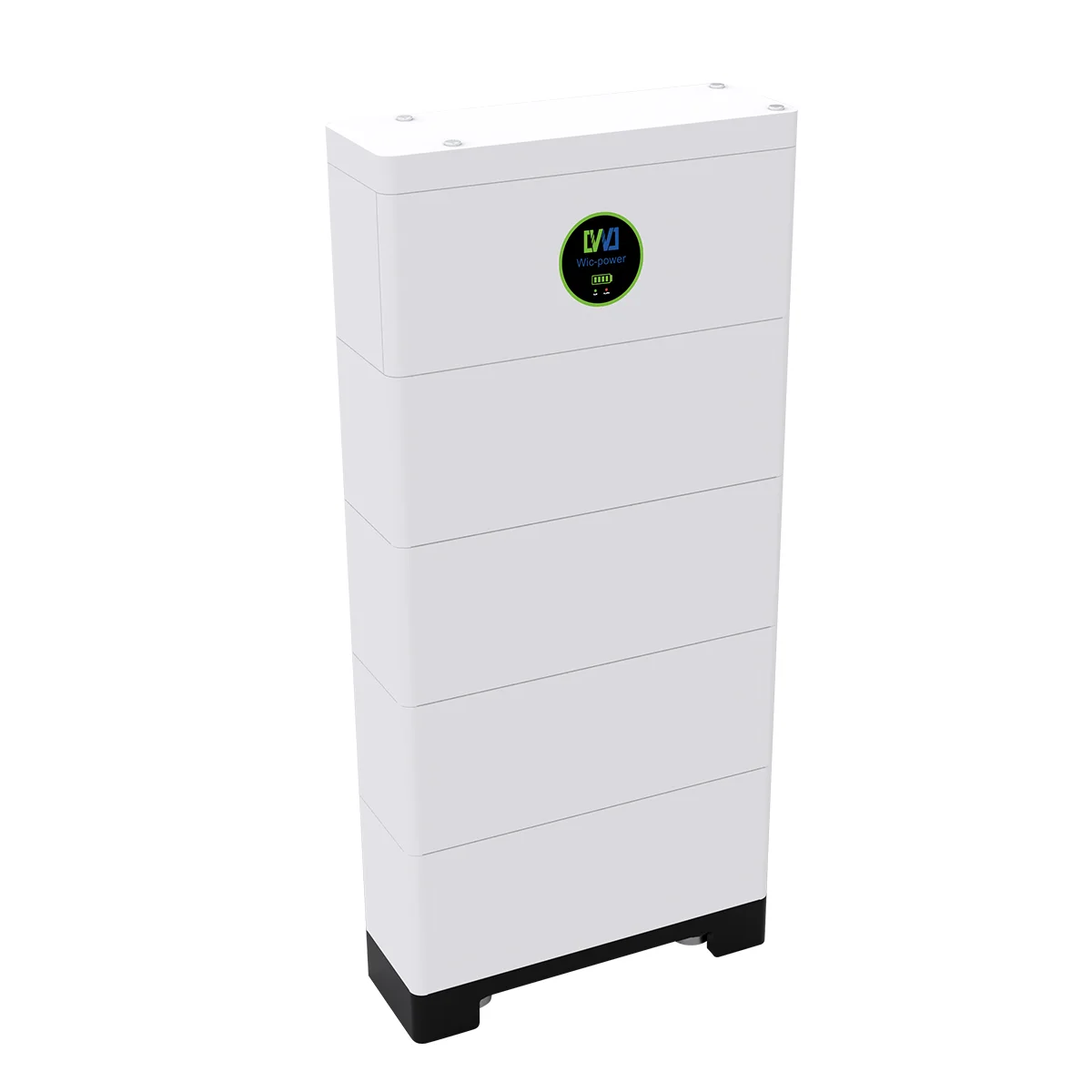

Power Modules

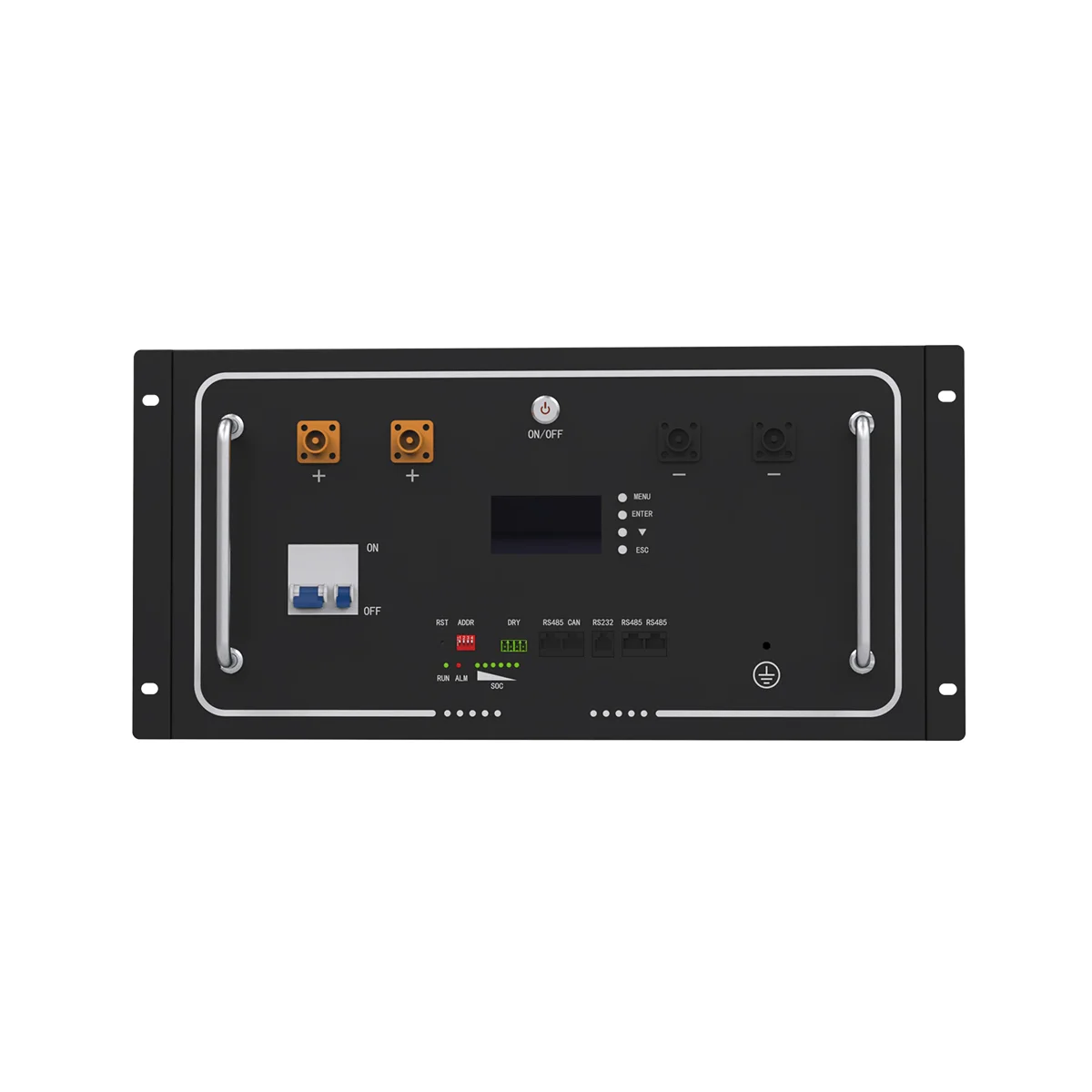

Battery Racks

Planning your energy system?

We support you in sizing and selecting the optimal components for your project.

Get advice now
